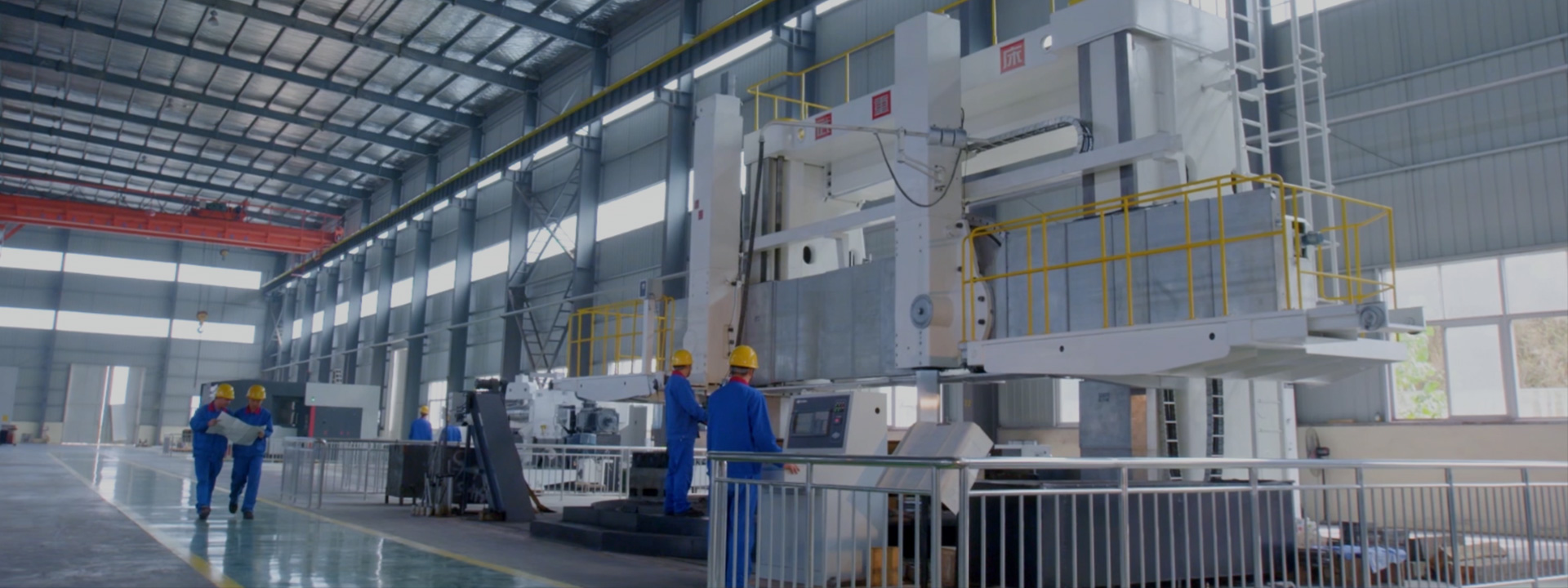

Manufacturing & Testing

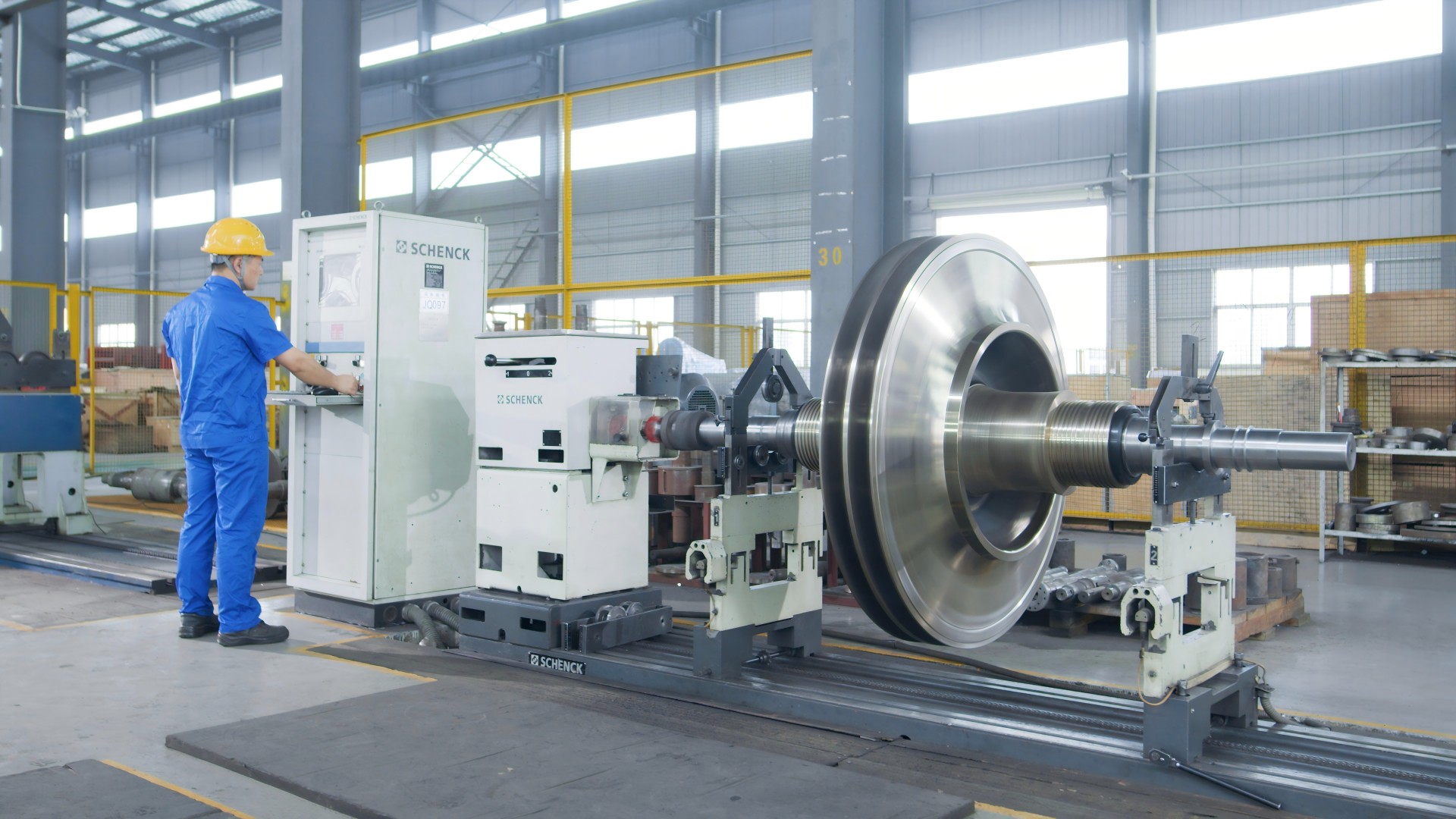

Testing capacity: Rotor weight ≤ 20 t; impeller diameter ≤ Φ4,000 mm

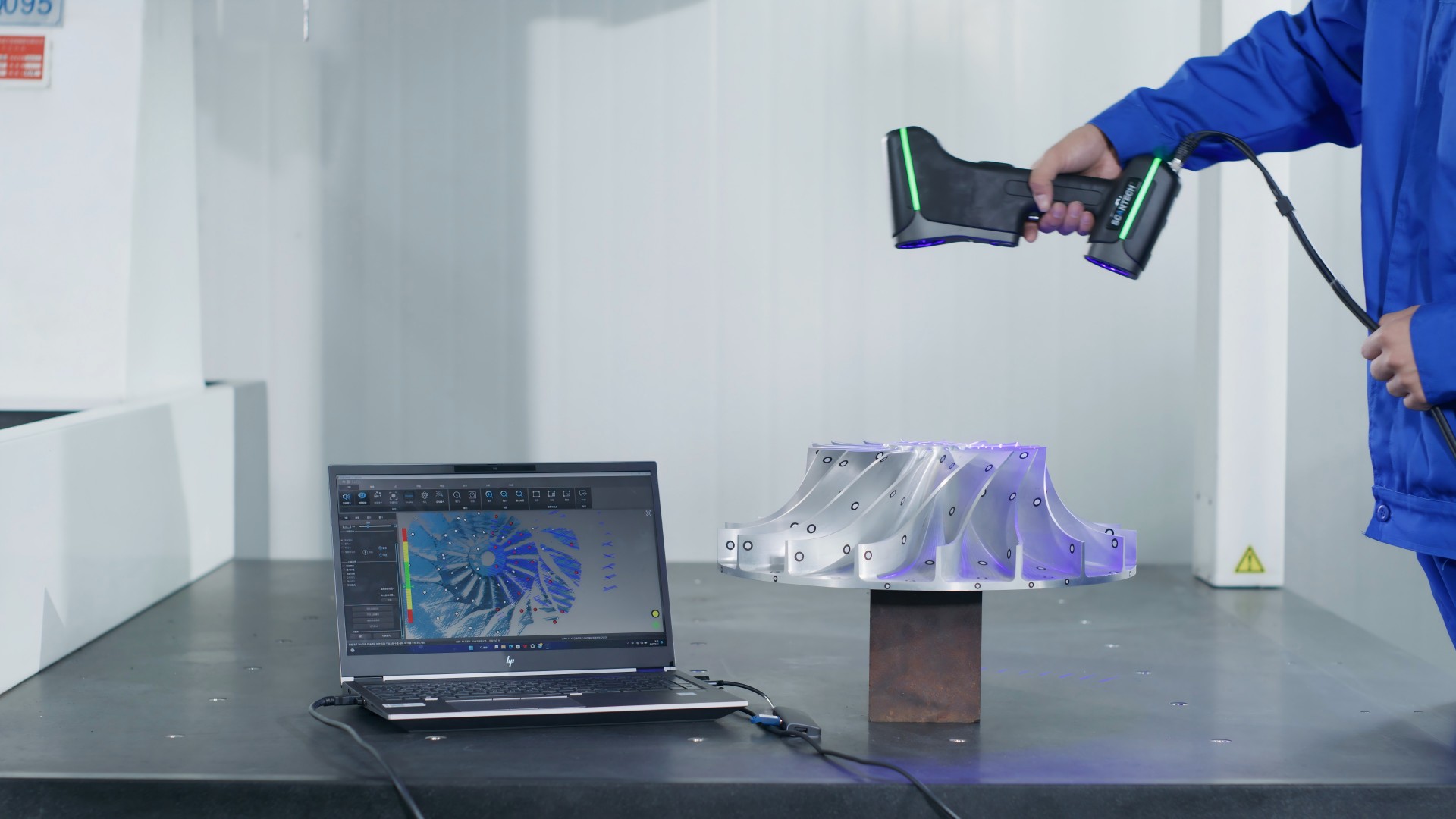

Testing capacity: Maximum scan area 550 × 600 mm; maximum accuracy error ≤ 0.020 mm + 0.035 mm

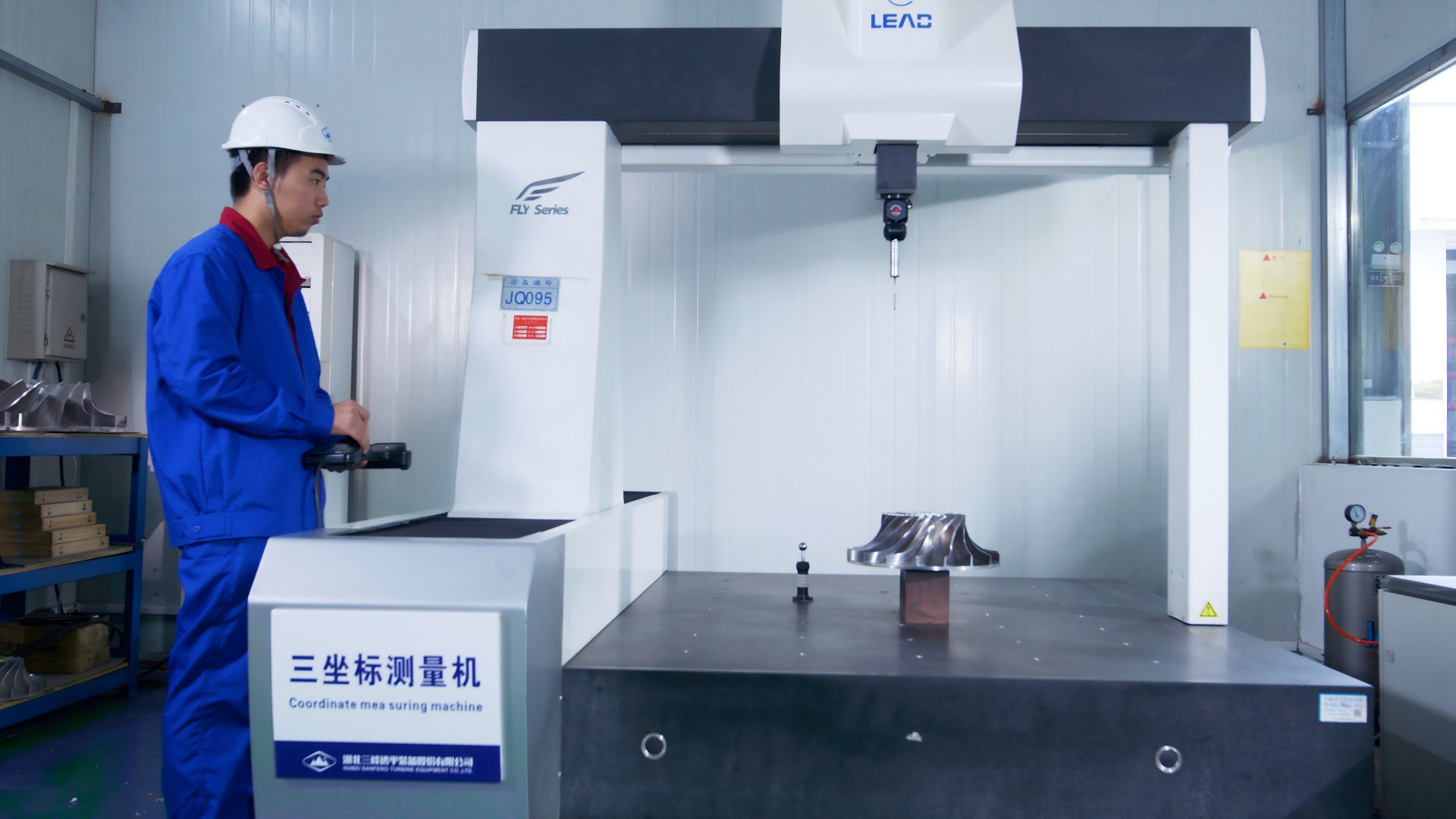

Testing capacity: Measuring range 1,200 × 1,500 × 1,000 mm; positioning accuracy 0.001 mm

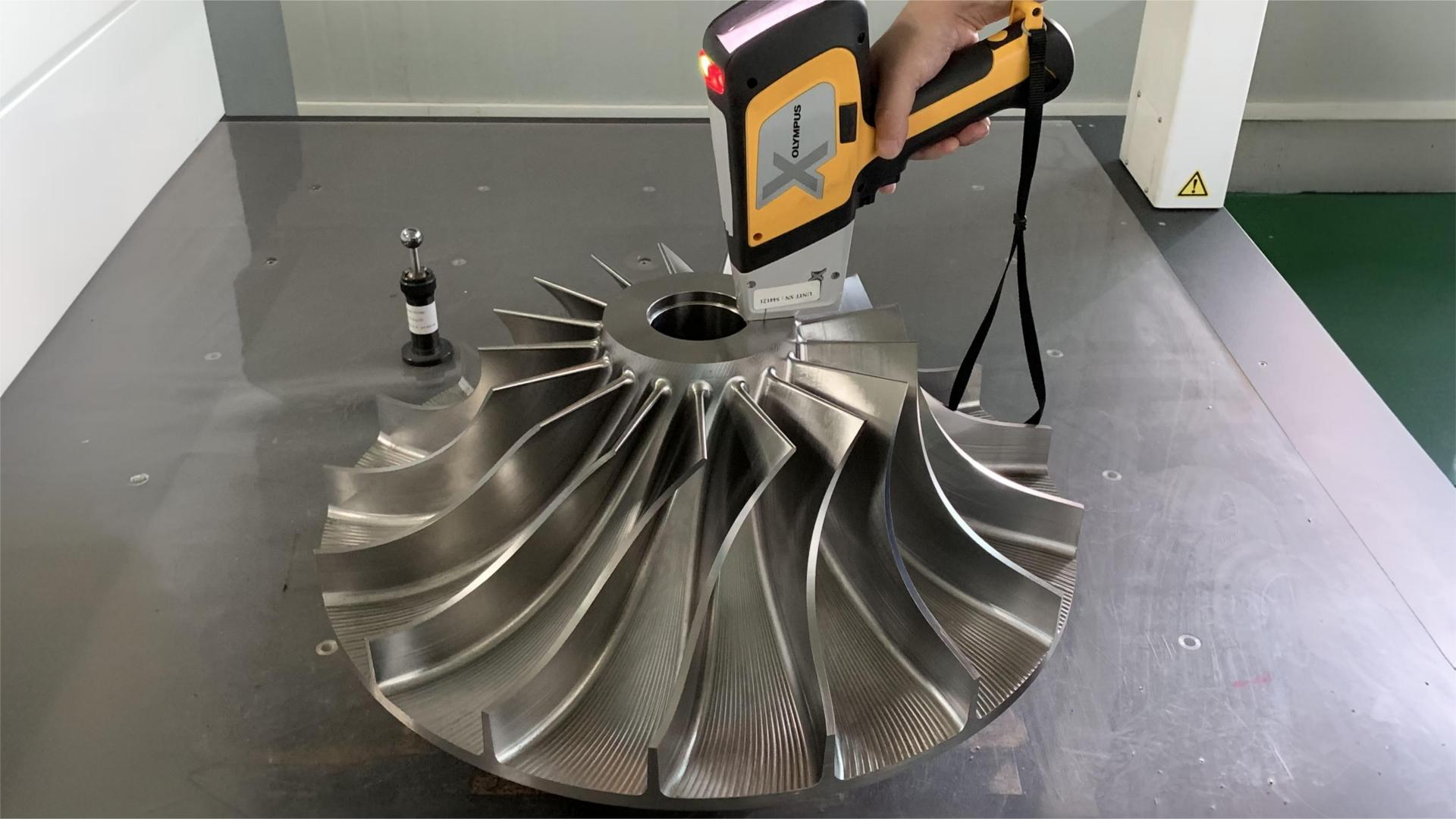

Application: Rapid material analysis for carbon steel, stainless steel, titanium, aluminum, etc.

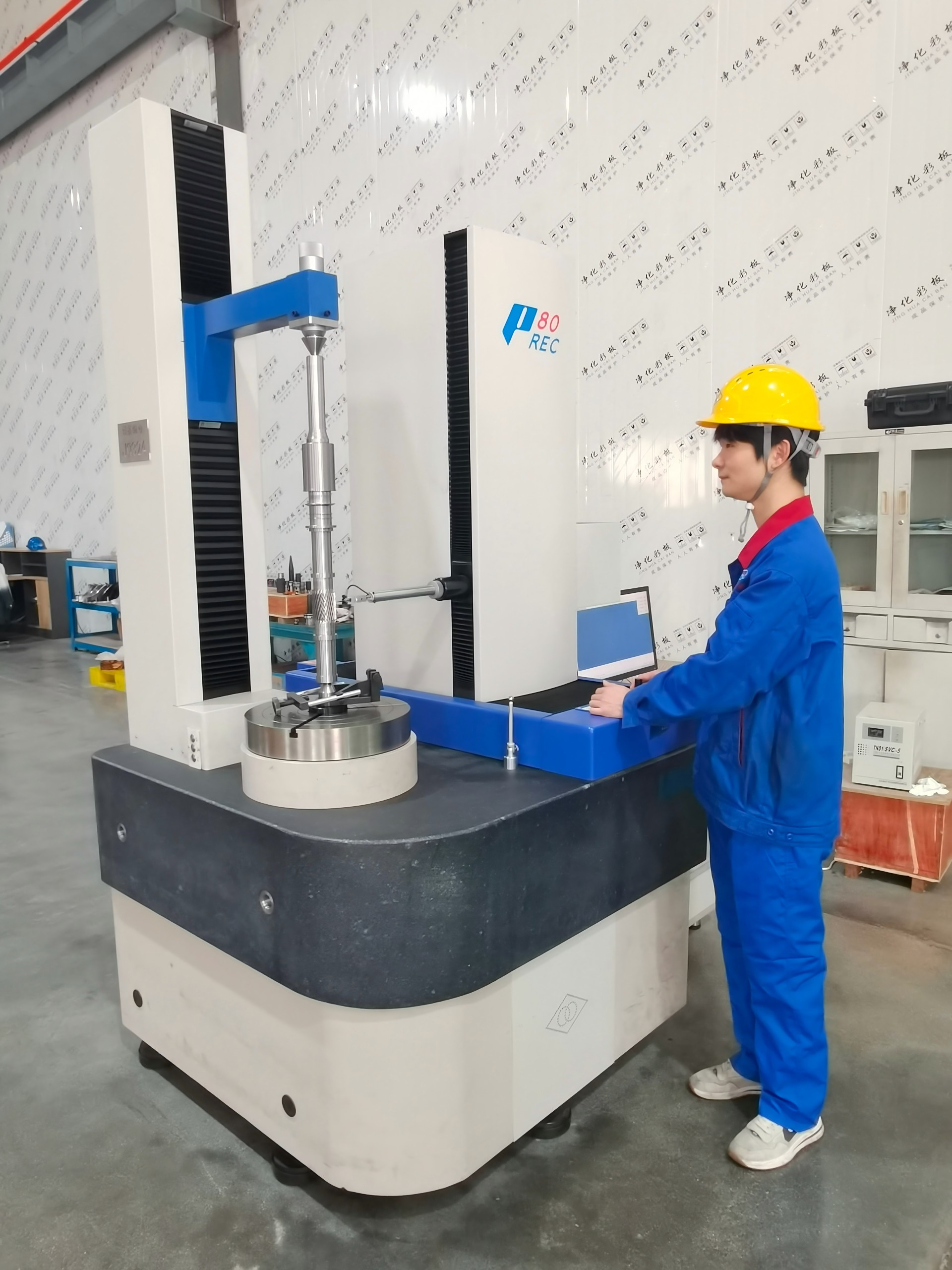

Testing capacity: Diameter ≤ 800 mm; length ≤ 1,000 mm; maximum profile error (involute) ≤ 0.001 mm; helix error ≤ 0.0025 mm

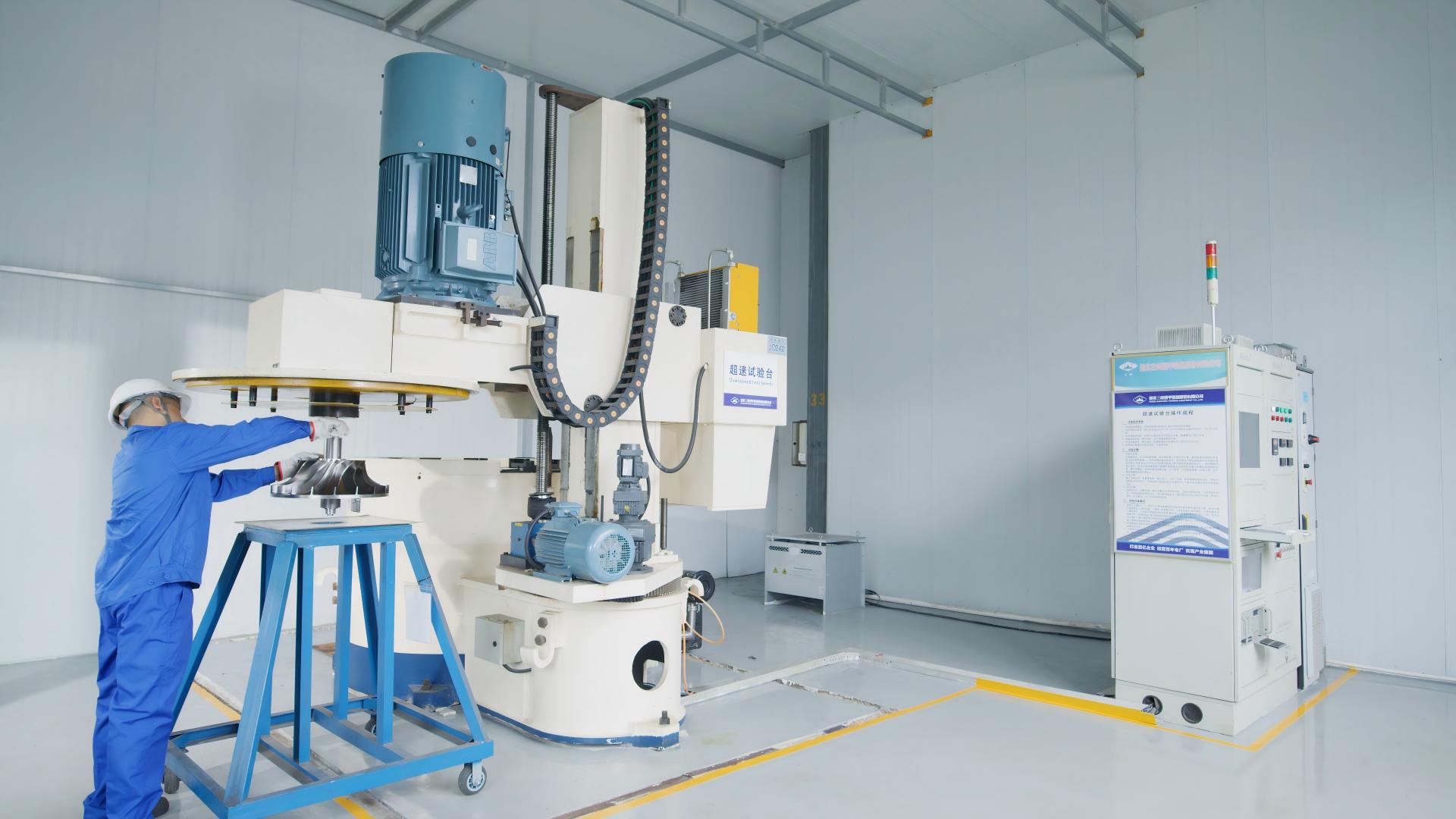

Testing capacity: Maximum speed 30,000 rpm; diameter < 1,000 mm

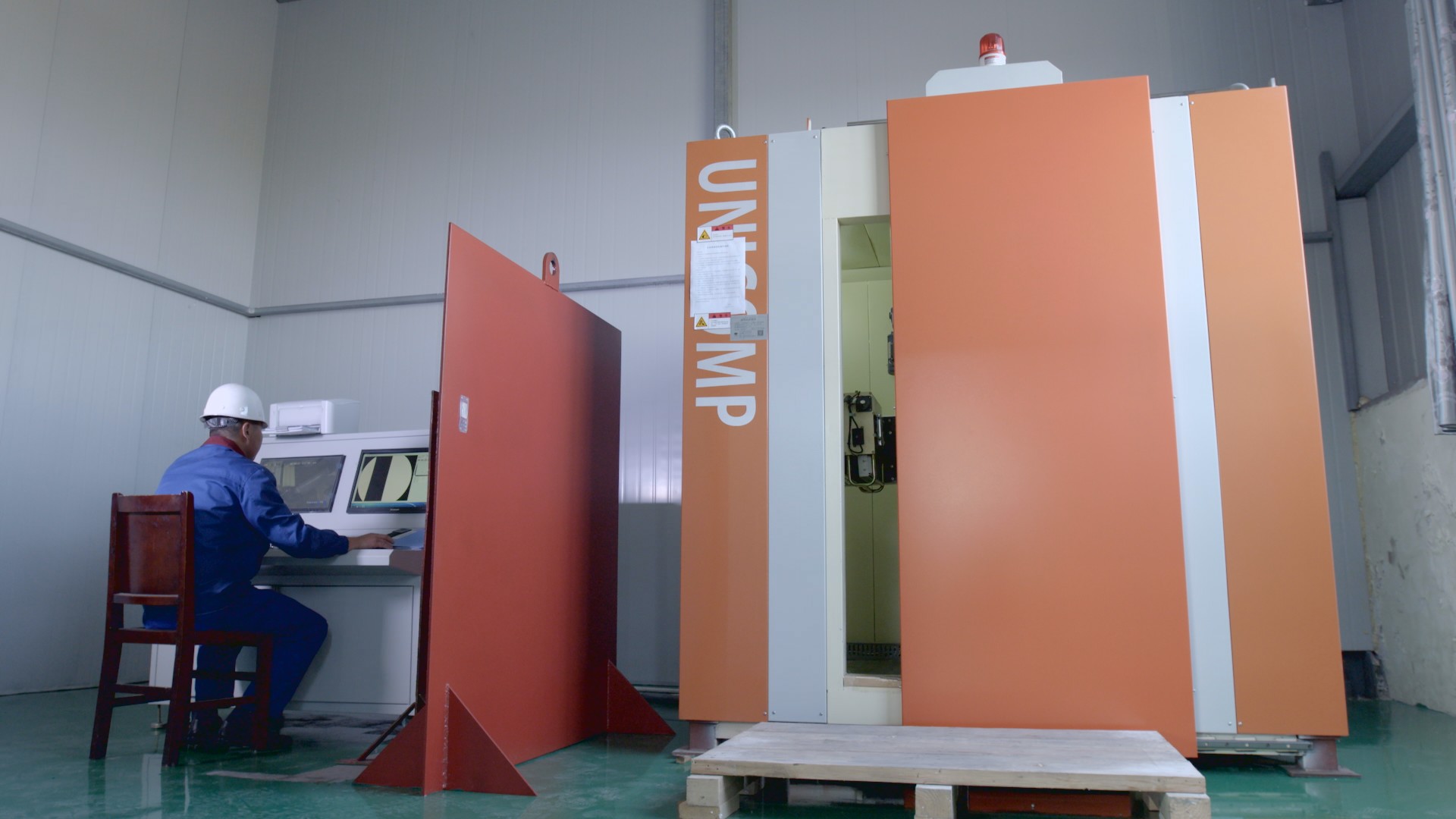

Testing capacity: Maximum penetration thickness T = 100 mm
